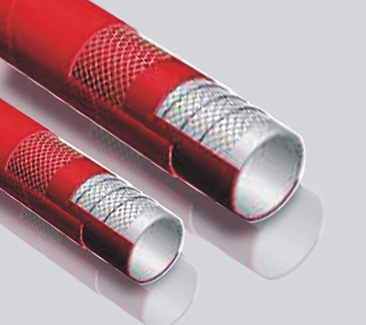

205 Liquid food suction and discharge hose (pressure resistance 10Bar 150psi)
Color: Red double reinforced with fiber steel wire
Temperature range: -30 ℃/+100 ℃
Inside the tube: Food grade EPDM EPDM rubber
Reinforcement layer: double-layer high-strength fiber thread embedded with spiral steel wire reinforcement
Tube outer tube: Red EPDM EPDM rubber, resistant to abrasion, aging, and ozone
Decontamination: It can be used for steam sterilization at a maximum of 120 degrees Celsius for several minutes; at a maximum of 50 degrees Celsius, use 1% concentration of peracetic acid, or 2% concentration of phosphoric acid, or 5% concentration of sodium hydroxide for several minutes.
Application: Used for suction and discharge of liquid food and alcoholic beverages with an alcohol content of not more than 50%
Safety factor: 3:1
| Purchase code | the inside diameter of | Outer diameter | weight | Bending radius | Work pressure | Resistant to negative pressure | Length of each roll |
| mm | mm | kg/m | mm | bar | bar | m | |
| 205-019-30 | 19 | 31 | 0.73 | 80 | 10 | 0.95 | 30 |
| 205-025-30 | 25 | 37 | 0.91 | 125 | 10 | 0.95 | 30 |
| 205-032-30 | 32 | 44 | 1.25 | 160 | 10 | 0.95 | 30 |
| 205-038-30 | 38 | 52 | 1.3 | 190 | 10 | 0.95 | 30 |
| 205-051-30 | 51 | 65 | 1.61 | 255 | 10 | 0.95 | 30 |
