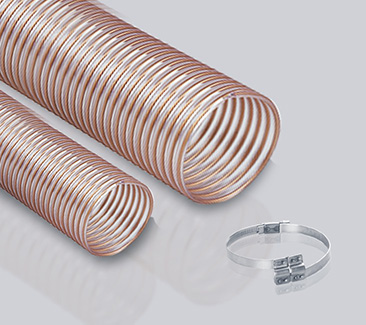

909 2.5 wall thickness PU hose, steel wire reinforced, heavy-duty wear-resistant
Color: translucent PU (polyester polyurethane) pipe wall, reinforced with spiral copper-plated steel wire
Temperature: -40°C / + 100°C
Features: smooth inner wall, abrasion resistance, oil resistance, hydrolysis resistance, mold resistance, the hose is non-toxic.
Application: The suction and transportation of other abrasive materials such as particles, sand, stones, cement, etc., are widely used in agriculture and truck loading and unloading.
Spiral direction: right-handed spiral
Connection: Bridge clamp 991R
| Part Number | Internal Diameter | External Diameter | Weight | Bending Radius | Working Pressure | Vacuum | Coil Length |
| mm | mm | kg/m | mm | bar | bar | m | |
| 909-038-15 | 38 | 2.50 | 1.05 | 95 | 3.5 | 0.85 | 15 |
| 909-040-15 | 40 | 2.50 | 1.10 | 100 | 3.50 | 0.85 | 15 |
| 909-045-15 | 45 | 2.50 | 1.22 | 113 | 3.30 | 0.85 | 15 |
| 909-050-15 | 50 | 2.50 | 1.35 | 125 | 3.25 | 0.85 | 15 |
| 909-060-15 | 60 | 2.50 | 1.62 | 150 | 3.20 | 0.85 | 15 |
| 909-063-15 | 63 | 2.50 | 1.65 | 155 | 3.20 | 0.85 | 15 |
| 909-070-15 | 70 | 2.50 | 1.89 | 175 | 3.00 | 0.80 | 15 |
| 909-076-15 | 76 | 2.50 | 1.95 | 188 | 2.50 | 0.80 | 15 |
| 909-080-15 | 80 | 2.50 | 2.08 | 200 | 2.20 | 0.80 | 15 |
| 909-090-15 | 90 | 2.50 | 2.34 | 225 | 2.00 | 0.70 | 15 |
| 909-100-10 | 100 | 2.50 | 2.59 | 250 | 1.65 | 0.70 | 10 |
| 909-102-10 | 102 | 2.50 | 2.62 | 250 | 1.65 | 0.70 | 10 |
| 909-110-10 | 110 | 2.50 | 2.85 | 275 | 1.50 | 0.70 | 10 |
| 909-120-10 | 120 | 2.50 | 3.10 | 300 | 1.45 | 0.65 | 10 |
| 909-127-10 | 127 | 2.50 | 3.20 | 310 | 1.35 | 0.65 | 10 |
| 909-130-10 | 130 | 2.50 | 3.28 | 325 | 1.30 | 0.65 | 10 |
| 909-140-10 | 140 | 2.50 | 3.53 | 350 | 1.25 | 0.55 | 10 |
| 909-150-10 | 150 | 2.50 | 3.72 | 375 | 1.15 | 0.55 | 10 |
| 909-152-10 | 152 | 2.50 | 3.80 | 390 | 1.15 | 0.55 | 10 |
| 909-160-10 | 160 | 2.50 | 3.97 | 400 | 1.00 | 0.50 | 10 |
| 909-180-10 | 180 | 2.50 | 4.19 | 450 | 0.90 | 0.50 | 10 |
| 909-200-10 | 200 | 2.50 | 4.40 | 500 | 0.85 | 0.41 | 10 |
| 909-203-10 | 203 | 2.50 | 4.40 | 500 | 0.85 | 0.41 | 10 |
| 909-225-10 | 225 | 2.50 | 4.95 | 563 | 0.80 | 0.35 | 10 |
| 909-250-10 | 250 | 2.50 | 5.50 | 625 | 0.60 | 0.32 | 10 |
| 909-254-10 | 254 | 2.50 | 5.50 | 625 | 0.60 | 0.32 | 10 |
| 909-300-10 | 300 | 2.50 | 6.70 | 750 | 0.50 | 0.30 | 10 |
| 909-305-10 | 305 | 2.50 | 6.70 | 750 | 0.50 | 0.30 | 10 |
| 909-350-10 | 350 | 2.50 | 7.81 | 875 | 0.40 | 0.20 | 10 |
| 909-400-10 | 400 | 2.50 | 8.90 | 1000 | 0.25 | 0.15 | 10 |
