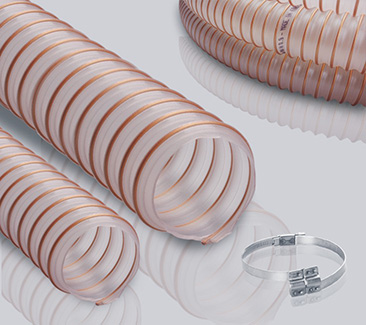

905S 0.8 wall thickness PU hose, flame-retardant, anti-static, medium-sized and wear-resistant
Color: Transparent PU pipe wall, reinforced with spiral copper-plated steel wire
Temperature range: -40°C / + 90°C (can withstand 125°C for a short time)
Structural characteristics: High wear-resistant polyester polyurethane (ESTER PU) hose, in line with DIN 4102 B1 flame retardant requirements, permanent antistatic, surface resistance R＜109 Ohm. The inner wall is smooth, and the spiral wall thickness is 0.8mm.
Application: It can be used for conveying and suction of various abrasive materials, such as dust, solid particles, powder, cutting chips, textile fibers, grinding media, seeds, and can be used in the feed tube of grain mills.
Spiral direction: right-handed spiral
Connection: Bridge clamp 991R
| Part Number | Internal Diameter | External Diameter | Working Pressure | Vacuum | Bending Radius | Weight | Coil Length |
| mm | mm | bar | bar | mm | kg/m | m | |
| 905S-020-20 | 20 | 26 | 4.025 | 0.847 | 27 | 0.23 | 20 |
| 905S-025-20 | 25 | 31 | 3.220 | 0.785 | 31 | 0.25 | 20 |
| 905S-032-20 | 32 | 40 | 2.520 | 0.711 | 40 | 0.35 | 20 |
| 905S-035-20 | 35 | 43 | 2.312 | 0.697 | 43 | 0.37 | 20 |
| 905S-038-20 | 38 | 46 | 2.100 | 0.662 | 46 | 0.39 | 20 |
| 905S-040-20 | 40 | 48 | 2.100 | 0.662 | 48 | 0.40 | 20 |
| 905S-045-20 | 45 | 53 | 1.840 | 0.588 | 53 | 0.42 | 20 |
| 905S-051-20 | 51 | 58 | 1.680 | 0.515 | 58 | 0.45 | 20 |
| 905S-055-20 | 55 | 63 | 1.540 | 0.441 | 63 | 0.51 | 20 |
| 905S-060-20 | 60 | 68 | 1.400 | 0.441 | 68 | 0.53 | 20 |
| 905S-063-20 | 63 | 71 | 1.335 | 0.408 | 71 | 0.58 | 20 |
| 905S-065-20 | 65 | 73 | 1.260 | 0.368 | 73 | 0.64 | 20 |
| 905S-070-20 | 70 | 78 | 1.120 | 0.368 | 78 | 0.68 | 20 |
| 905S-076-20 | 76 | 84 | 1.120 | 0.294 | 84 | 0.72 | 20 |
| 905S-080-20 | 80 | 88 | 0.890 | 0.294 | 88 | 0.76 | 20 |
| 905S-090-20 | 90 | 99 | 0.840 | 0.221 | 99 | 0.88 | 20 |
| 905S-102-20 | 102 | 111 | 0.840 | 0.221 | 110 | 0.95 | 15 |
| 905S-110-15 | 110 | 119 | 0.700 | 0.221 | 119 | 1.03 | 15 |
| 905S-120-15 | 120 | 129 | 0.700 | 0.221 | 129 | 1.12 | 15 |
| 905S-127-15 | 127 | 135 | 0.700 | 0.221 | 135 | 1.18 | 15 |
| 905S-130-15 | 130 | 139 | 0.560 | 0.221 | 139 | 1.20 | 15 |
| 905S-140-15 | 140 | 149 | 0.560 | 0.147 | 149 | 1.38 | 15 |
| 905S-152-15 | 152 | 161 | 0.560 | 0.147 | 161 | 1.48 | 15 |
| 905S-160-15 | 160 | 170 | 0.560 | 0.147 | 170 | 1.74 | 15 |
| 905S-170-15 | 170 | 180 | 0.420 | 0.147 | 180 | 1.80 | 15 |
| 905S-180-15 | 180 | 190 | 0.420 | 0.147 | 190 | 1.90 | 15 |
| 905S-203-15 | 203 | 214 | 0.420 | 0.147 | 214 | 2.30 | 15 |
| 905S-225-15 | 228 | 235 | 0.280 | 0.074 | 235 | 2.55 | 10 |
| 905S-254-15 | 254 | 260 | 0.280 | 0.074 | 260 | 3.02 | 10 |
| 905S-279-10 | 279 | 284 | 0.280 | 0.074 | 284 | 3.11 | 10 |
| 905S-305-10 | 305 | 310 | 0.250 | 0.066 | 310 | 3.20 | 10 |
