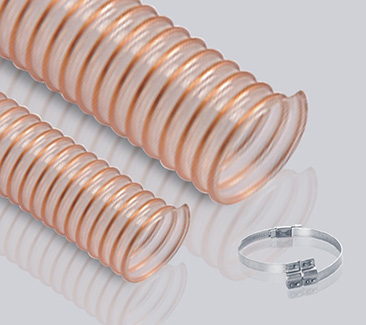

905R 0.8 wall thickness robot dedicated hose
Material: High wear-resistant polyester polyurethane, copper-plated spring steel wire reinforcement
Temperature: -40°C / + 90°C (can withstand 125°C for a short time)
Features: Specially designed and customized hoses for the robotics industry. The inner wall is completely smooth, with ultra-high flexibility and high vacuum, and has excellent mechanical elasticity. It can be used in high-frequency fast reciprocating motion stations and can be used as a robot cable protection tube. It can also be used for powerful suction cup vacuum suction, drag chain and other equipment.
Application: It can be used as a protection tube for robot cables, it can also be used for powerful suction cup vacuum suction, drag chains and other equipment, and it can also be used for fine powder conveying.
Spiral direction: right-hand
screw Connection: bridge clamp 991R
| Purchase code | the inside diameter of | Outer diameter | weight | Bending radius | Work pressure | Resistant to negative pressure | length |
| mm | mm | kg/m | mm | bar | bar | m | |
| 905R-025-20 | 25 | 32 | 0.35 | 32 | 3.10 | 0.92 | 20 |
| 905R-032-20 | 32 | 40 | 0.43 | 40 | 2.70 | 0.85 | 20 |
| 905R-038-20 | 38 | 46 | 0.45 | 46 | 2.30 | 0.80 | 20 |
| 905R-040-20 | 40 | 48 | 0.47 | 48 | 2.30 | 0.80 | 20 |
| 905R-045-20 | 45 | 53 | 0.53 | 53 | 2.00 | 0.73 | 20 |
| 905R-050-20 | 50 | 58 | 0.67 | 58 | 1.85 | 0.65 | 20 |
| 905R-060-20 | 60 | 68 | 0.80 | 68 | 1.60 | 0.56 | 20 |
| 905R-065-15 | 65 | 73 | 0.90 | 73 | 1.46 | 0.50 | 15 |
| 905R-070-15 | 70 | 78 | 0.95 | 78 | 1.32 | 0.45 | 15 |
| 905R-075-15 | 75 | 84 | 1.05 | 84 | 1.32 | 0.39 | 15 |
| 905R-080-15 | 80 | 88 | 1.25 | 88 | 1.09 | 0.39 | 15 |
