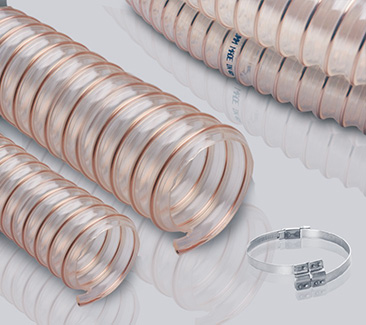

905P+ 1.0 wall thickness PU hose, full flat inner wall, heavy-duty wear-resistant
Color: Translucent PU (polyether polyurethane) pipe wall, reinforced with spiral copper-plated steel wire
Temperature range:-40/100 °C
Structural features: smooth inner wall, abrasion resistance, oil resistance, hydrolysis resistance, and mildew resistance. The hose is non-toxic, halogen-free, and plasticizer-free.
Application: suction and transportation of abrasive particles, also used for the transportation of water-based materials such as mud, sewage, etc.
Spiral direction: right-handed spiral
Connection: Bridge clamp 991R
| Part Number | Internal Diameter | Wall thickness | Weight | Bending Radius | Working Pressure | Vacuum | Coil Length |
| mm | mm | kg/m | mm | bar | bar | m | |
| 905P+-013-20 | 13 | 1.00 | 0.10 | 8 | 1.70 | 0.65 | 20 |
| 905P+-016-20 | 16 | 1.00 | 0.13 | 10 | 1.60 | 0.65 | 20 |
| 905P+-018-20 | 18 | 1.00 | 0.15 | 12 | 1.50 | 0.60 | 20 |
| 905P+-020-20 | 20 | 1.00 | 0.17 | 14 | 1.45 | 0.55 | 20 |
| 905P+-025-20 | 25 | 1.00 | 0.19 | 16 | 1.45 | 0.55 | 20 |
| 905P+-030-20 | 30 | 1.00 | 0.25 | 22 | 1.45 | 0.55 | 20 |
| 905P+-032-20 | 32 | 1.00 | 0.27 | 25 | 1.35 | 0.55 | 20 |
| 905P+-035-20 | 35 | 1.00 | 0.30 | 33 | 1.25 | 0.45 | 20 |
| 905P+-038-20 | 38 | 1.00 | 0.33 | 33 | 1.25 | 0.45 | 20 |
| 905P+-040-20 | 40 | 1.00 | 0.35 | 33 | 1.25 | 0.45 | 20 |
| 905P+-051-20 | 51 | 1.00 | 0.41 | 42 | 1.20 | 0.18 | 20 |
| 905P+-060-20 | 60 | 1.00 | 0.47 | 52 | 1.15 | 0.30 | 20 |
| 905P+-063-20 | 63 | 1.00 | 0.51 | 65 | 1.10 | 0.30 | 20 |
| 905P+-076-20 | 76 | 1.00 | 0.61 | 67 | 1.05 | 0.25 | 20 |
| 905P+-080-20 | 80 | 1.00 | 0.65 | 72 | 1.05 | 0.20 | 20 |
| 905P+-090-20 | 90 | 1.00 | 0.80 | 86 | 0.85 | 0.23 | 20 |
| 905P+-102-15 | 102 | 1.00 | 0.95 | 93 | 0.70 | 0.23 | 15 |
| 905P+-110-15 | 110 | 1.00 | 1.02 | 107 | 0.65 | 0.20 | 15 |
| 905P+-120-15 | 120 | 1.00 | 1.08 | 113 | 0.65 | 0.20 | 15 |
| 905P+-127-15 | 127 | 1.00 | 1.15 | 117 | 0.55 | 0.20 | 15 |
| 905P+-140-15 | 140 | 1.00 | 1.18 | 133 | 0.55 | 0.15 | 15 |
| 905P+-152-15 | 152 | 1.00 | 1.25 | 145 | 0.45 | 0.15 | 15 |
| 905P+-160-15 | 160 | 1.00 | 1.34 | 155 | 0.40 | 0.15 | 15 |
| 905P+-170-15 | 170 | 1.00 | 1.50 | 160 | 0.40 | 0.15 | 15 |
| 905P+-180-15 | 180 | 1.00 | 1.68 | 175 | 0.35 | 0.12 | 15 |
| 905P+-203-15 | 203 | 1.00 | 1.87 | 195 | 0.30 | 0.10 | 15 |
| 905P+-228-10 | 228 | 1.00 | 2.11 | 219 | 0.25 | 0.09 | 10 |
| 905P+-254-10 | 254 | 1.00 | 2.35 | 247 | 0.25 | 0.09 | 10 |
| 905P+-305-10 | 305 | 1.00 | 3.08 | 297 | 0.20 | 0.07 | 10 |
| 905P+-350-10 | 350 | 1.00 | 3.75 | 347 | 0.18 | 0.06 | 10 |
| 905P+-400-10 | 400 | 1.00 | 4.24 | 397 | 0.15 | 0.06 | 10 |
| 905P+-450-10 | 450 | 1.00 | 5.42 | 448 | 0.15 | 0.06 | 10 |
| 905P+-500-10 | 500 | 1.00 | 6.02 | 500 | 0.15 | 0.06 | 10 |
