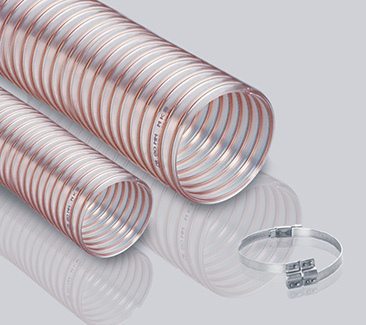

905P 0.7 wall thickness PU hose, full flat inner wall, medium-sized wear-resistant
Color: Translucent PU (polyether polyurethane) pipe wall, reinforced with spiral copper-plated steel wire
Temperature range:-40/100 °C
Structural characteristics: smooth inner wall, abrasion resistance, oil resistance, hydrolysis resistance, mold resistance, the hose is non-toxic, halogen-free, and plasticizer-free
Application: suction and transportation of abrasive particles, also used for the transportation of water-based materials such as mud, sewage, etc.
Spiral direction: right-handed spiral
Connection: Bridge clamp 991R
Part Number | Internal Diameter | Wall thickness | Weight | Bending Radius | Working Pressure | Vacuum | Coil Length |
mm | mm | kg/m | mm | bar | bar | m | |
905P-020-20 | 20 | 0.70 | 0.25 | 20 | 1.50 | 0.50 | 20 |
905P-025-20 | 25 | 0.70 | 0.28 | 25 | 1.40 | 0.40 | 20 |
905P-030-20 | 30 | 0.70 | 0.33 | 30 | 1.30 | 0.35 | 20 |
905P-032-20 | 32 | 0.70 | 0.34 | 32 | 1.30 | 0.35 | 20 |
905P-035-20 | 35 | 0.70 | 0.38 | 38 | 1.20 | 0.30 | 20 |
905P-038-20 | 38 | 0.70 | 0.40 | 38 | 1.10 | 0.25 | 20 |
905P-040-20 | 40 | 0.70 | 0.43 | 40 | 0.90 | 0.20 | 20 |
905P-051-20 | 51 | 0.70 | 0.51 | 51 | 0.90 | 0.20 | 20 |
905P-055-20 | 55 | 0.70 | 0.55 | 55 | 0.90 | 0.20 | 20 |
905P-060-20 | 60 | 0.70 | 0.60 | 60 | 0.80 | 0.19 | 20 |
905P-063-20 | 63 | 0.70 | 0.63 | 63 | 0.80 | 0.19 | 20 |
905P-065-20 | 65 | 0.70 | 0.65 | 65 | 0.80 | 0.19 | 20 |
905P-070-20 | 70 | 0.70 | 0.69 | 70 | 0.80 | 0.19 | 20 |
905P-076-20 | 76 | 0.70 | 0.74 | 76 | 0.60 | 0.18 | 20 |
905P-080-20 | 80 | 0.70 | 0.79 | 80 | 0.60 | 0.18 | 20 |
905P-090-20 | 90 | 0.70 | 0.88 | 90 | 0.50 | 0.15 | 20 |
905P-102-15 | 102 | 0.70 | 1.04 | 100 | 0.50 | 0.15 | 15 |
905P-110-15 | 110 | 0.70 | 1.14 | 110 | 0.40 | 0.10 | 15 |
905P-115-15 | 115 | 0.70 | 1.15 | 115 | 0.40 | 0.10 | 15 |
905P-120-15 | 120 | 0.70 | 1.16 | 120 | 0.38 | 0.10 | 15 |
905P-125-15 | 125 | 0.70 | 1.20 | 125 | 0.35 | 0.08 | 15 |
905P-140-15 | 140 | 0.70 | 1.34 | 140 | 0.30 | 0.08 | 15 |
905P-152-15 | 152 | 0.70 | 1.43 | 150 | 0.25 | 0.05 | 15 |
905P-160-15 | 160 | 0.70 | 1.52 | 160 | 0.20 | 0.05 | 15 |
905P-175-15 | 175 | 0.70 | 1.66 | 175 | 0.20 | 0.04 | 15 |
905P-180-15 | 180 | 0.70 | 1.76 | 180 | 0.30 | 0.07 | 15 |
905P-203-15 | 203 | 0.70 | 2.00 | 200 | 0.15 | 0.03 | 15 |
905P-225-15 | 225 | 0.70 | 2.24 | 225 | 0.15 | 0.03 | 10 |
905P-228-10 | 228 | 0.70 | 2.24 | 225 | 0.15 | 0.03 | 10 |
905P-254-10 | 254 | 0.70 | 2.48 | 250 | 0.10 | 0.02 | 10 |
905P-305-10 | 305 | 0.70 | 3.66 | 305 | 0.09 | 0.02 | 10 |
905P-350-10 | 350 | 0.70 | 4.25 | 350 | 0.08 | 0.01 | 10 |
905P-400-10 | 400 | 0.70 | 4.84 | 400 | 0.07 | 0.01 | 10 |
905P-450-10 | 450 | 0.70 | 5.43 | 450 | 0.06 | 0.01 | 10 |
905P-500-10 | 500 | 0.70 | 6.02 | 500 | 0.05 | 0.01 | 10 |
