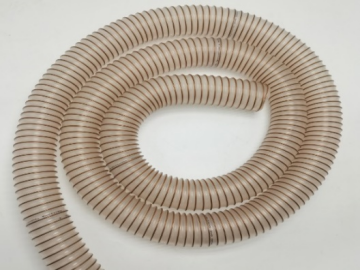

905 0.9 wall thickness PU hose steel wire reinforced mdium duty wear-resistance

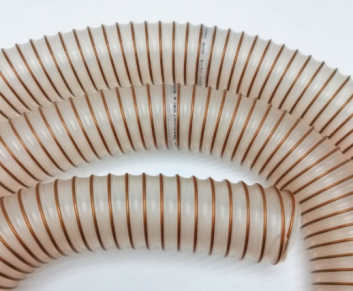

Color: Translucent PU (polyester polyurethane) hose wall, reinforced with spiral copper-plated steel wire
Temperature range:-40/100 °C
Structural characteristics: Smooth inner wall, wear-resistant, oil-resistant, non-toxic, halogen-free, plasticizer-free
Application: Suction and delivery of abrasive particles.
Spiral direction: right-handed spiral
Connection: Bridge clamp 991R
| Part Number | Internal Diameter | Wall thickness | Weight | Bending Radius | Working Pressure | Vacuum | Coil Length |
| mm | mm | kg/m | mm | bar | bar | m | |
| 905-025-20 | 25 | 0.90 | 0.28 | 25 | 1.40 | 0.40 | 20 |
| 905-032-20 | 32 | 0.90 | 0.34 | 32 | 1.30 | 0.35 | 20 |
| 905-038-20 | 38 | 0.90 | 0.40 | 38 | 1.10 | 0.25 | 20 |
| 905-051-20 | 51 | 0.90 | 0.51 | 51 | 0.90 | 0.20 | 20 |
| 905-060-20 | 60 | 0.90 | 0.60 | 60 | 0.80 | 0.19 | 20 |
| 905-063-20 | 63 | 0.90 | 0.63 | 63 | 0.80 | 0.19 | 20 |
| 905-070-20 | 70 | 0.90 | 0.69 | 70 | 0.80 | 0.19 | 20 |
| 905-076-20 | 76 | 0.90 | 0.74 | 76 | 0.60 | 0.18 | 20 |
| 905-080-20 | 80 | 0.90 | 0.79 | 80 | 0.60 | 0.18 | 20 |
| 905-090-20 | 90 | 0.90 | 0.88 | 90 | 0.50 | 0.15 | 20 |
| 905-102-15 | 102 | 0.90 | 1.04 | 100 | 0.50 | 0.15 | 15 |
| 905-110-15 | 110 | 0.90 | 1.14 | 110 | 0.40 | 0.10 | 15 |
| 905-120-15 | 120 | 0.90 | 1.16 | 120 | 0.38 | 0.10 | 15 |
| 905-127-15 | 127 | 0.90 | 1.20 | 127 | 0.35 | 0.08 | 15 |
| 905-130-15 | 130 | 0.90 | 1.25 | 130 | 0.35 | 0.08 | 15 |
| 905-140-15 | 140 | 0.90 | 1.34 | 140 | 0.30 | 0.08 | 15 |
| 905-152-15 | 152 | 0.90 | 1.43 | 150 | 0.25 | 0.05 | 15 |
| 905-160-15 | 160 | 0.90 | 1.52 | 160 | 0.20 | 0.05 | 15 |
| 905-170-15 | 170 | 0.90 | 1.65 | 170 | 0.25 | 0.06 | 15 |
| 905-180-15 | 180 | 0.90 | 1.76 | 180 | 0.30 | 0.07 | 15 |
| 905-203-15 | 203 | 0.90 | 2.00 | 200 | 0.15 | 0.03 | 15 |
| 905-220-10 | 220 | 0.90 | 2.15 | 220 | 0.15 | 0.03 | 10 |
| 905-228-10 | 228 | 0.90 | 2.24 | 225 | 0.15 | 0.03 | 10 |
| 905-254-10 | 254 | 0.90 | 2.48 | 250 | 0.10 | 0.02 | 10 |
| 905-279-10 | 279 | 0.90 | 2.86 | 279 | 0.10 | 0.02 | 10 |
| 905-305-10 | 305 | 0.90 | 3.66 | 305 | 0.09 | 0.02 | 10 |
