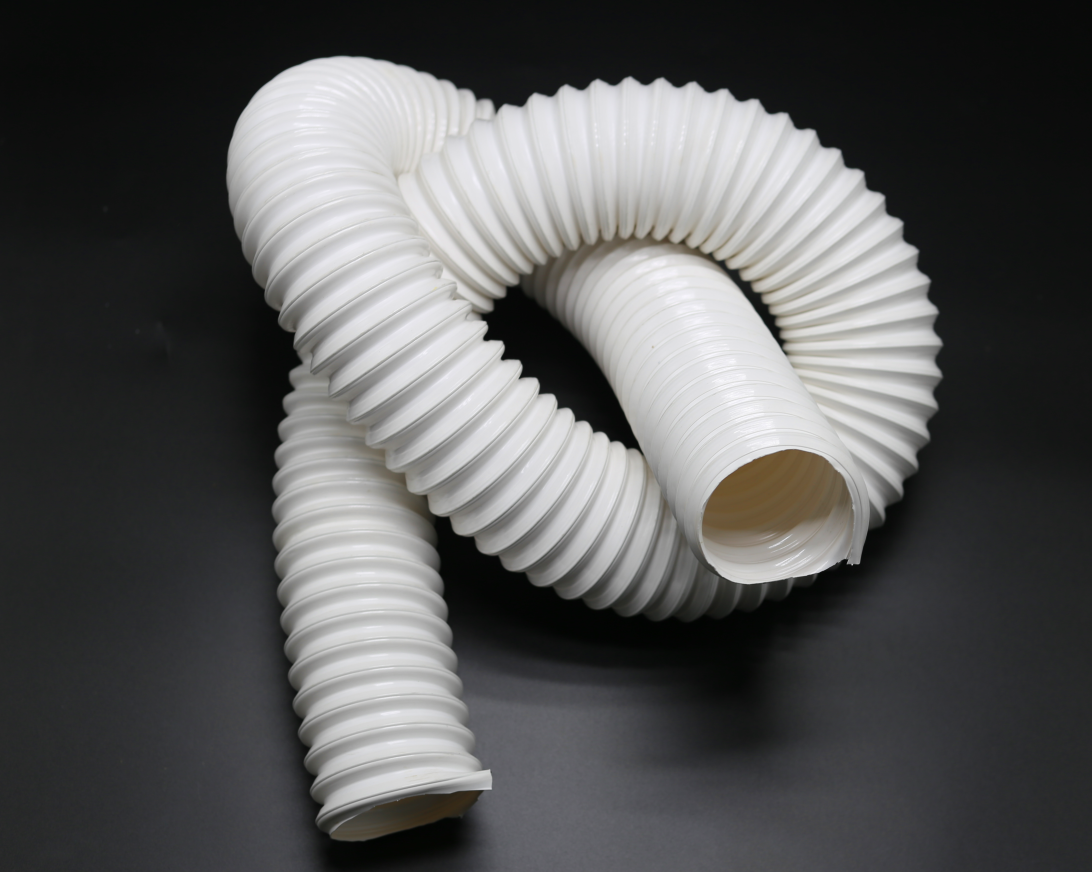

904W white colour 0.6 wall thickness PU hose, steel wire reinforcement, highly flexible hose

904W  white colour 0.6 wall thickness PU hose, steel wire reinforcement, highly flexible hose


904W  white colour 0.6 wall thickness PU hose, steel wire reinforcement, highly flexible hose


Color: White colour PU pipe wall, with copper-plated plastic coated steel wire spiral reinforcement (compression type)


Temperature: -40°C / + 90°C (can withstand 125°C for a short time)


Features: Polyester polyurethane hose with copper-plated plastic-coated steel wire reinforcement. The wall thickness ranges from 0.4 to 0.75 mm. It is extremely light and extremely soft, with a stretch ratio of up to 5:1. It is easy to take care of, easy to transport and can save storage space. Wear resistance, mineral oil resistance, ozone resistance, and aging resistance. Especially suitable for the dynamic position of machinery and equipment. It is halogen-free, raw materials comply with REACH regulations, and comply with RoHS environmental protection directives. The grounding of the spiral steel wire can discharge static electricity, which conforms to the standard of TRB S 2153.


Application: transfer and suction of particles, scraps, abrasive powders. It is especially suitable for powder conveying and dust suction in woodworking and ceramic industries. Particularly suitable for parts that need to swing.


Spiral direction: left-hand screw connection: bridge clamp 991L


*ETHER PU products are available

Part NumberInternal DiameterWall ThicknessWeightVacuumBending RadiusRoll LengthVolume/Roll
mmmmg/mbarmmmm3
904W-025-1025 0.40 140 0.20 30 100.004
904W-032-1032 0.40 170 0.20 30 100.006
904W-035-1035 0.40 172 0.20 30 100.006
904W-038-1038 0.40 175 0.20 30 100.005
904W-040-1040 0.40 185 0.20 32 100.005
904W-045-1045 0.40 205 0.20 36 100.006
904W-051-1051 0.40 230 0.20 40 10 0.007
904W-060-1060 0.40 265 0.17 50 10 0.010
904W-063-1063 0.40 275 0.17 55 10 0.011
904W-065-1065 0.40 285 0.17 56 10 0.011
904W-070-1070 0.43 375 0.17 60 10 0.013
904W-076-1076 0.43 405 0.17 65 10 0.015
904W-080-1080 0.43 420 0.16 65 10 0.016
904W-090-1090 0.43 470 0.16 75 10 0.022
904W-102-10102 0.53 530 0.13 85 10 0.028
904W-110-10110 0.53 570 0.12 90 10 0.032
904W-120-10120 0.53 620 0.10 100 10 0.037
904W-127-10127 0.63 760 0.10 105 10 0.045
904W-130-10130 0.63 775 0.08 105 10 0.047
904W-140-10140 0.63 840 0.08 115 10 0.054
904W-152-10152 0.63 900 0.08 125 10 0.063
904W-160-10160 0.63 945 0.07 130 10 0.069
904W-180-10180 0.63 1,210 0.05 150 10 0.087
904W-200-10200 0.63 1,345 0.040 165 10 0.106
904W-203-10203 0.63 1,360 0.040 165 10 0.109
904W-228-10228 0.63 1,525 0.040 185 10 0.142
904W-254-10254 0.65 1,845 0.04 210 10 0.174
904W-279-10279 0.65 2,025 0.04 230 10 0.209
904W-305-10305 0.65 2,205 0.03 250 10 0.248
