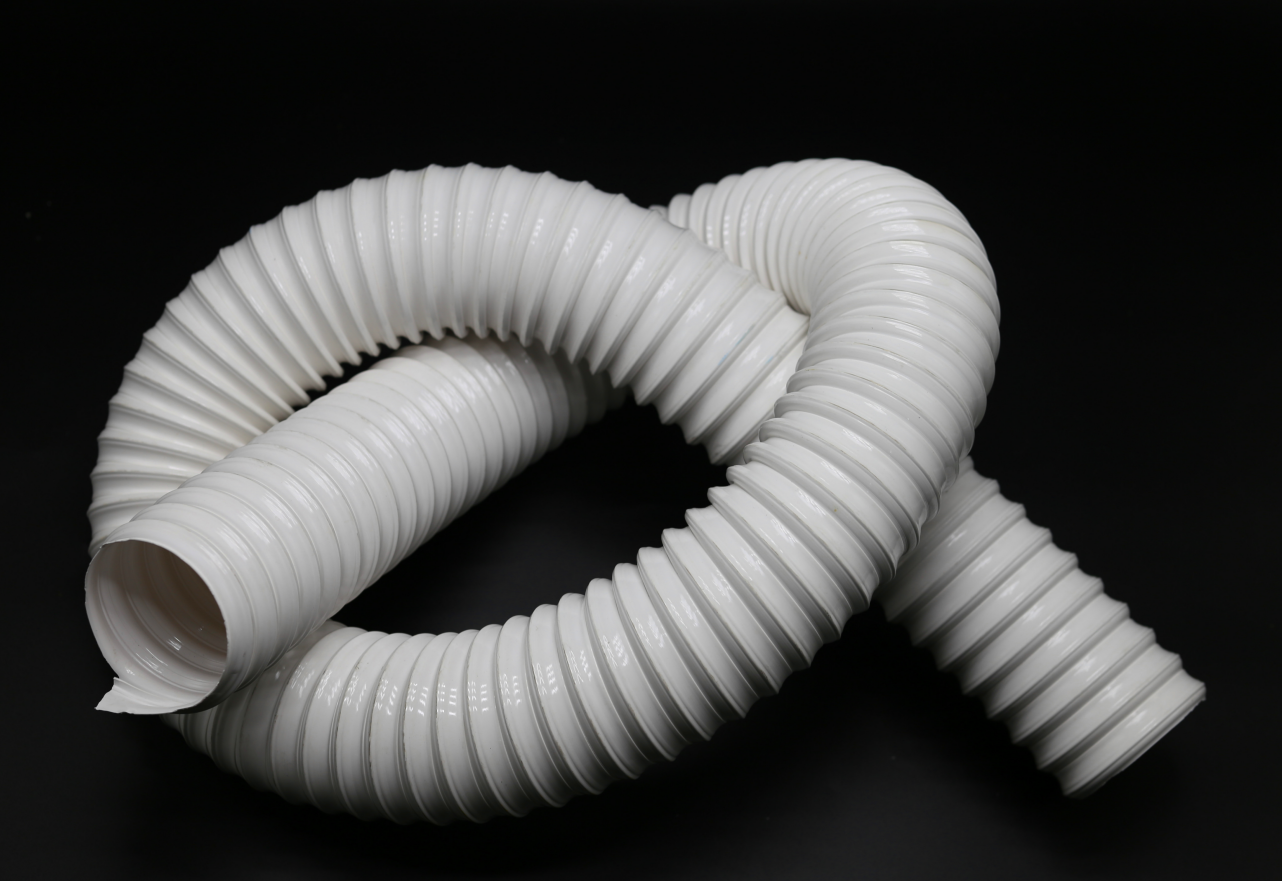

903W white colour 0.6 wall thickness PU hose, steel wire reinforced, medium-sized wear-resistant, widely used
Color: White PU wall, reinforced with spiral copper-plated steel wire
Temperature range:-40/90 ℃ (up to +125°C in a short time)
Structural features: white colour polyester polyurethane hose (ESTER PU) (wall thickness between the spirals 0.6mm), copper-plated elastic steel wire spiral reinforcement embedded in the pipe wall. Light weight, flexible bending, good tensile, abrasion strength and elongation at break. No softener, no halogen, no harm, no cadmium.
Application: suction or feeding of small particles, scraps, abrasive powders and chemical powders. It is mainly used for ventilation and dust collection in the production environment with relatively large dust such as woodworking workshop, ceramic workshop, cement workshop and so on. Can also be used as a protective sleeve
Spiral direction: left-handed spiral
Connection: Bridge clamp 991R
| Part Number | Internal Diameter | Wall Thickness | Weight | Vacuum | Bending Radius | Roll Length | Volume/Roll |
| mm | mm | g/m | bar | mm | m | m3 | |
| 903W-025-10 | 25 | 0.40 | 140 | 0.20 | 30 | 10 | 0.054 |
| 903W-032-10 | 32 | 0.40 | 155 | 0.20 | 30 | 10 | 0.065 |
| 903W-035-10 | 35 | 0.40 | 160 | 0.20 | 30 | 10 | 0.071 |
| 903W-038-10 | 38 | 0.40 | 170 | 0.20 | 30 | 10 | 0.076 |
| 903W-040-10 | 40 | 0.40 | 180 | 0.20 | 32 | 10 | 0.079 |
| 903W-045-10 | 45 | 0.40 | 200 | 0.20 | 36 | 10 | 0.092 |
| 903W-051-10 | 51 | 0.40 | 220 | 0.20 | 40 | 10 | 0.108 |
| 903W-060-10 | 60 | 0.40 | 255 | 0.17 | 50 | 10 | 0.137 |
| 903W-063-10 | 63 | 0.40 | 270 | 0.17 | 55 | 10 | 0.143 |
| 903W-065-10 | 65 | 0.40 | 275 | 0.17 | 56 | 10 | 0.155 |
| 903W-070-10 | 70 | 0.43 | 370 | 0.17 | 60 | 10 | 0.175 |
| 903W-076-10 | 76 | 0.43 | 400 | 0.17 | 65 | 10 | 0.245 |
| 903W-080-10 | 80 | 0.43 | 420 | 0.16 | 65 | 10 | 0.256 |
| 903W-090-10 | 90 | 0.43 | 470 | 0.16 | 75 | 10 | 0.303 |
| 903W-102-10 | 102 | 0.53 | 530 | 0.13 | 85 | 10 | 0.289 |
| 903W-110-10 | 110 | 0.53 | 570 | 0.12 | 90 | 10 | 0.32 |
| 903W-120-10 | 120 | 0.53 | 615 | 0.10 | 100 | 10 | 0.372 |
| 903W-127-10 | 127 | 0.63 | 760 | 0.10 | 105 | 10 | 0.405 |
| 903W-130-10 | 130 | 0.63 | 775 | 0.08 | 105 | 10 | 0.414 |
| 903W-140-10 | 140 | 0.63 | 840 | 0.08 | 115 | 10 | 0.504 |
| 903W-152-10 | 152 | 0.63 | 900 | 0.08 | 125 | 10 | 0.544 |
| 903W-160-10 | 160 | 0.63 | 945 | 0.07 | 130 | 10 | 0.662 |
| 903W-180-10 | 180 | 0.63 | 1,250 | 0.05 | 150 | 10 | 0.855 |
| 903W-203-10 | 203 | 0.63 | 1,405 | 0.04 | 165 | 10 | 1.130 |
| 903W-228-10 | 228 | 0.63 | 1,570 | 0.04 | 185 | 10 | 0.933 |
| 903W-254-10 | 254 | 0.65 | 1,900 | 0.04 | 210 | 10 | 1.188 |
| 903W-279-10 | 279 | 0.65 | 2,085 | 0.04 | 230 | 10 | 1.48 |
| 903W-305-10 | 305 | 0.65 | 2,275 | 0.03 | 250 | 10 | 1.613 |
| 903W-315-10 | 315 | 0.65 | 2,350 | 0.03 | 275 | 10 | 1.665 |
| 903W-356-10 | 356 | 0.65 | 2,650 | 0.03 | 300 | - | - |
| 903W-406-10 | 406 | 0.75 | 3,150 | 0.03 | 350 | - | - |
