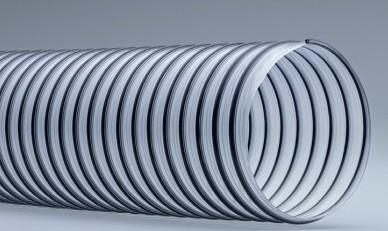

902 Translucent polyethylene PE hose, corrosion-resistant and low-temperature resistant, used for chemical flue gas suction and exhaust
Color: translucent polyethylene hose
Temperature range:-40/80 °C
Structural characteristics: Polyethylene (PE) hose, light weight, flexible to bend, especially good chemical resistance to solvents and corrosive gases, no halogen, no softener,
Application: Used for suction and exhaust of strong chemical fumes in air conditioning and other ventilation equipment
Screw direction: Right-hand screw Connection: Bridge clamp 991R
Part Number | Internal Diameter | Wall thickness | weight | Work pressure | Vacuum | Bending Radius | Coil Length |
mm | mm | kg/m | bar | bar | mm | m | |
902-025-20 | 25 | 0.5 | 0.14 | 2.35 | 0.75 | 25 | 20 |
902-032-20 | 32 | 0.5 | 0.18 | 2.10 | 0.60 | 32 | 20 |
902-038-20 | 38 | 0.5 | 0.20 | 1.90 | 0.40 | 38 | 20 |
902-040-20 | 40 | 0.5 | 0.21 | 1.80 | 0.40 | 40 | 20 |
902-051-20 | 51 | 0.5 | 0.39 | 1.50 | 0.35 | 51 | 20 |
902-060-20 | 60 | 0.5 | 0.46 | 1.35 | 0.28 | 60 | 20 |
902-063-20 | 63 | 0.5 | 0.50 | 1.15 | 0.25 | 63 | 20 |
902-076-20 | 76 | 0.5 | 0.57 | 0.90 | 0.15 | 76 | 20 |
902-080-20 | 80 | 0.5 | 0.60 | 0.80 | 0.13 | 80 | 20 |
