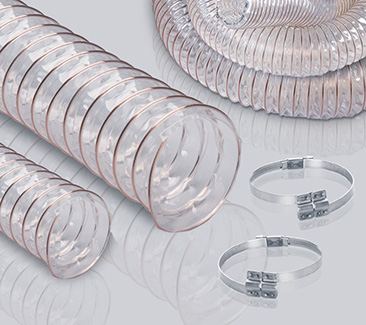

901 0.4 wall thickness PU hose, steel wire reinforcement, light and wear-resistant, cost-effective
Color: Transparent PU pipe wall, reinforced with spiral copper-plated steel wire
Temperature range:-40/90 °C (up to +125 °C in a short time)
Structural characteristics: Polyester polyurethane hose (ESTER PU), the spiral wall thickness is 0.4mm, the copper-plated steel wire is reinforced and embedded in the pipe wall, the weight is very light, it can be flexibly bent, and the tensile, abrasion resistance and elongation at break are good. Compressible (compression ratio 1:5), no softener, no halogen, no cadmium.
Application: suction or feeding of small particles, scraps, abrasive powders and chemical powders. It is mainly used for ventilation and dust collection in the production environment with relatively large dust such as woodworking workshop, ceramic workshop, cement workshop and so on. It can also be used as a protective sleeve.
Spiral direction: right-handed spiral
Connection: Bridge clamp 991R
*Polyether polyurethane (ETHER PU) products are available
Part Number | Internal Diameter | Wall thickness | weight | Vacuum | Bending Radius | Coil Length | Volume |
mm | mm | g/m | bar | mm | m | m3 | |
901-025-10 | 25 | 0.40 | 120 | 0.04 | 15 | 10 | 0.002 |
901-032-10 | 32 | 0.40 | 140 | 0.04 | 18 | 10 | 0.003 |
901-038-10 | 38 | 0.40 | 160 | 0.04 | 20 | 10 | 0.004 |
901-040-10 | 40 | 0.40 | 165 | 0.04 | 22 | 10 | 0.004 |
901-045-10 | 45 | 0.40 | 175 | 0.04 | 23 | 10 | 0.005 |
901-050-10 | 50 | 0.40 | 195 | 0.04 | 25 | 10 | 0.006 |
901-060-10 | 60 | 0.40 | 240 | 0.04 | 30 | 10 | 0.009 |
901-063-10 | 63 | 0.40 | 250 | 0.04 | 32 | 10 | 0.009 |
901-070-10 | 70 | 0.40 | 360 | 0.04 | 35 | 10 | 0.011 |
901-076-10 | 76 | 0.40 | 390 | 0.04 | 38 | 10 | 0.013 |
901-080-10 | 80 | 0.40 | 410 | 0.04 | 40 | 10 | 0.014 |
901-090-10 | 90 | 0.40 | 450 | 0.04 | 45 | 10 | 0.018 |
901-100-10 | 100 | 0.40 | 510 | 0.03 | 50 | 10 | 0.024 |
901-102-10 | 102 | 0.40 | 520 | 0.03 | 51 | 10 | 0.025 |
901-110-10 | 110 | 0.40 | 560 | 0.03 | 55 | 10 | 0.029 |
901-115-10 | 115 | 0.40 | 580 | 0.03 | 55 | 10 | 0.031 |
901-120-10 | 120 | 0.40 | 610 | 0.025 | 60 | 10 | 0.034 |
901-127-10 | 127 | 0.40 | 640 | 0.025 | 64 | 10 | 0.038 |
901-130-10 | 130 | 0.40 | 660 | 0.02 | 65 | 10 | 0.040 |
901-140-10 | 140 | 0.40 | 710 | 0.02 | 70 | 10 | 0.046 |
901-150-10 | 150 | 0.40 | 760 | 0.02 | 75 | 10 | 0.052 |
901-152-10 | 152 | 0.40 | 770 | 0.02 | 76 | 10 | 0.054 |
901-160-10 | 160 | 0.45 | 880 | 0.015 | 80 | 10 | 0.067 |
901-170-10 | 170 | 0.45 | 910 | 0.015 | 85 | 10 | 0.072 |
901-180-10 | 180 | 0.45 | 990 | 0.015 | 90 | 10 | 0.083 |
901-200-10 | 200 | 0.45 | 1,100 | 0.01 | 100 | 10 | 0.101 |
901-203-10 | 203 | 0.45 | 1,120 | 0.01 | 102 | 10 | 0.104 |
901-220-10 | 220 | 0.45 | 1,200 | 0.01 | 110 | 10 | 0.116 |
901-228-10 | 228 | 0.45 | 1,250 | 0.01 | 114 | 10 | 0.129 |
901-250-10 | 250 | 0.50 | 1,300 | 0.01 | 125 | 10 | 0.154 |
901-279-10 | 279 | 0.50 | 1,450 | 0.01 | 140 | 10 | 0.190 |
901-300-10 | 300 | 0.50 | 1,550 | 0.01 | 150 | 10 | 0.218 |
901-350-10 | 350 | 0.50 | 1,820 | 0.01 | 175 | 10 | 0.293 |
901-400-10 | 400 | 0.50 | 2070 | 0.01 | 200 | 10 | 0.379 |
901-500-10 | 500 | 0.50 | 2600 | 0.01 | 230 | 5 | 0.400 |
