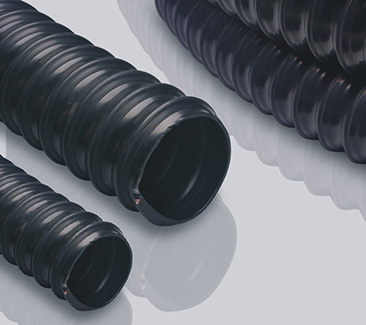

957 electrically conductive black pu pvc hose, reinforced with rigid plastic helix
Colour: Black
temperature range:-30°C / +70°C
Structural characteristics: Multi-layer hose, the inner layer is made of electrically conductive PVC/PU material, and the outer layer is lined with rigid PVC spiral reinforcement. There are corrugated protrusions to ensure that the hose has good bending and mechanical properties; especially when used at low temperatures. Compared with the traditional rubber hose, the hose is lighter, stronger and softer. The hose 957 has the following characteristics: resistance to abrasion, mineral oil, most chemicals, ozone and good weather resistance.
Application: transportation of powder and other abrasive materials (such as mud, sand, cement, gravel, gravel, etc.), dock loading and unloading, shipyards, solid waste treatment, ground cleaning, and tank trucks, etc.
The hose complies with the RoHS environmental protection directive, the inner wall is made of permanent conductive materials, and the surface resistivity (≤106Ω/m) is in line with the requirements of ISO 8031.
Part Number | Internal Diameter | Min Wall th | Max Wall th | Weight | Working Pressure | Bursting Pressure | Vacuum | Bending Radius | Coild Length | Volume |
mm | mm | mm | kg/m | bar | bar | bar | mm | m | m3 | |
957-038-50 | 38.1 | 2.7 | 5.8 | 0.700 | 3 | 9 | 0.9 | 110 | 50 | 0.198 |
957-052-50 | 50.8 | 3.0 | 6.5 | 1.095 | 2 | 6 | 0.9 | 140 | 50 | 0.332 |
957-063-50 | 63.5 | 3.1 | 6.8 | 1.335 | 2 | 6 | 0.9 | 150 | 50 | 0.521 |
957-076-50 | 76.2 | 3.2 | 7.3 | 1.650 | 2 | 6 | 0.9 | 190 | 50 | 0.712 |
957-102-30 | 102.0 | 3.6 | 9.1 | 2.685 | 2 | 6 | 0.9 | 280 | 30 | 0.811 |
957-127-30 | 127.0 | 3.8 | 9.1 | 3.450 | 2 | 6 | 0.8 | 380 | 30 | 1.259 |
957-152-20 | 152.4 | 4.0 | 9.7 | 4.250 | 1 | 3 | 0.8 | 510 | 20 | 1.347 |
957-203-10 | 203.0 | 4.7 | 11.3 | 6.350 | 1 | 3 | 0.8 | 760 | 10 | 2.599 |
