Colour: Black
Temperature Range：-40°C / + 90°C

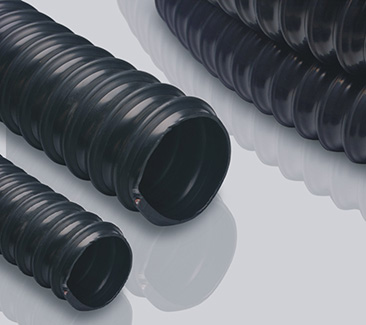

Features: ESTER PU hose with plastic-coated spiral steel wire reinforcement. The wall of the tube is permanently conductive, and the surface resistance value is ≤104Ω/M, which conforms to the ISO 8031 standard.The inner wall is smooth, which makes the material transfer smoothly in the pipe. The spiral wall thickness of hoses of different sizes is 1.4mm.
The hose is durable and very soft, and it can still maintain good flexibility even in low temperature environments.It is suitable for the transportation of heavy and abrasive materials.It is resistant to chemicals, ozone, weathering, halogen-free and meets the requirements of the RoHS environmental protection directive.
The hose can dissipate electrostatic charges through grounding, and its surface resistance is less than 104Ω/M, which is suitable for production environments that require permanent static discharge.Comply with the regulations and requirements of ATEX, ISO 8031, TRBS 2153 and TRGS 727.
| Part Number | Internal Diameter | Wall thickness | Weight | Work Pressure | Vacuum | Bending Radius | Coil Length |
| mm | mm | kg/m | bar | bar | mm | m | |
| 956-025-20 | 25 | 1.4 | 0.380 | 3.000 | 0.900 | 48 | 20 |
| 956-035-20 | 35 | 1.4 | 0.450 | 2.600 | 0.800 | 53 | 20 |
| 956-038-20 | 38 | 1.4 | 0.520 | 2.400 | 0.750 | 57 | 20 |
| 956-040-20 | 40 | 1.4 | 0.560 | 2.300 | 0.700 | 60 | 20 |
| 956-050-20 | 50 | 1.4 | 0.670 | 1.900 | 0.600 | 75 | 20 |
| 956-060-20 | 60 | 1.4 | 0.790 | 1.800 | 0.550 | 90 | 20 |
| 956-075-20 | 75 | 1.4 | 0.980 | 1.200 | 0.500 | 113 | 20 |
| 956-080-20 | 80 | 1.4 | 1.090 | 1.200 | 0.450 | 120 | 20 |
| 956-090-20 | 90 | 1.4 | 1.230 | 1.100 | 0.450 | 135 | 20 |
| 956-100-20 | 100 | 1.4 | 1.360 | 1.100 | 0.400 | 150 | 20 |
| 956-110-20 | 110 | 1.4 | 1.380 | 1.000 | 0.350 | 165 | 20 |
| 956-120-20 | 120 | 1.4 | 1.420 | 0.900 | 0.300 | 180 | 20 |
| 956-125-20 | 125 | 1.4 | 1.540 | 0.800 | 0.250 | 188 | 20 |
| 956-140-20 | 140 | 1.4 | 1.750 | 0.700 | 0.200 | 210 | 20 |
| 956-150-20 | 150 | 1.4 | 1.820 | 0.700 | 0.200 | 225 | 20 |
| 956-160-15 | 160 | 1.4 | 2.150 | 0.600 | 0.200 | 240 | 15 |
| 956-180-15 | 180 | 1.4 | 2.550 | 0.500 | 0.150 | 270 | 15 |
| 956-200-15 | 200 | 1.4 | 2.920 | 0.500 | 0.150 | 300 | 15 |
| 956-225-15 | 225 | 1.4 | 3.250 | 0.400 | 0.100 | 338 | 15 |
| 956-250-15 | 250 | 1.4 | 3.570 | 0.300 | 0.100 | 375 | 15 |
| 956-300-15 | 300 | 1.4 | 4.310 | 0.300 | 0.100 | 450 | 15 |
