Color: dark gray
Temperature: -10°C / +50°C

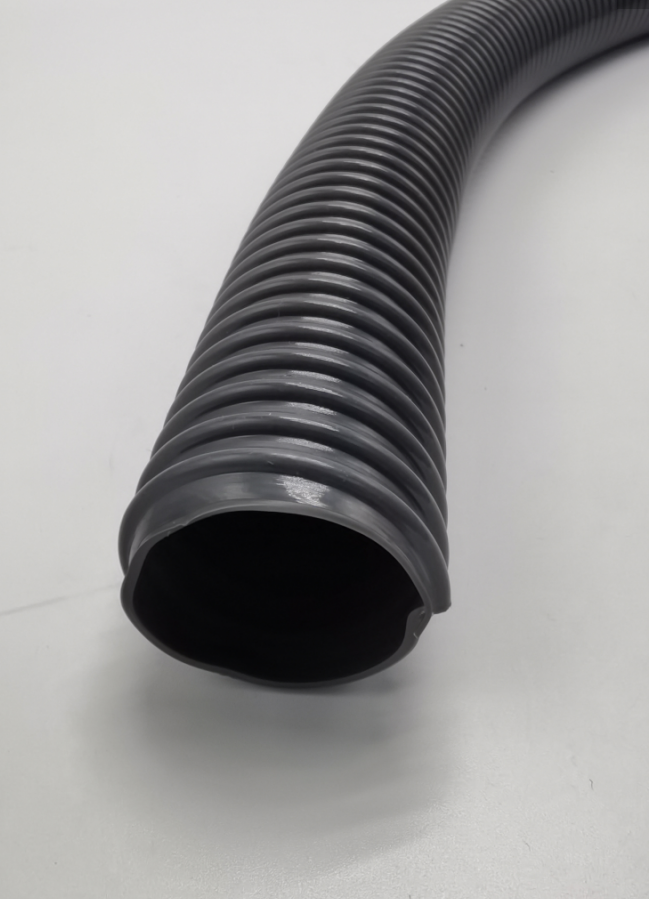

Features: Plasticized PVC hose, shockproof rigid PVC spiral reinforcement. The wall thickness ranges from 0.8mm to 1.2mm, and the inner wall is completely smooth, which is softer and lighter than EO hoses. Excellent mechanical properties, light weight, softness, small bending radius, resistance to abrasion and torsion, weather resistance, aging resistance, ozone resistance, UV resistance, resistance to a variety of chemicals, and halogen-free.
Application: It can be used in heating, air conditioning and ventilation systems to suck air, smoke, various gases, dust, sawdust, etc.; suitable for vacuum cleaning equipment.
Standard: Comply with ROHS 2011/65/EC directive, REACH Regulation (1907/2006) regulations.
| Part Number | Internal Diameter | Min Wall th | Max Wall th | Weight | Vacuum | Bending Radius | Coild Length | Volume |
| mm | mm | mm | g/m | mH2O | mm | m | m3 | |
| 951-025-50 | 25.0 | 0.8 | 2.5 | 150 | 2.5 | 30 | 50 | 0.072 |
| 951-030-50 | 30.0 | 0.8 | 2.6 | 190 | 2.5 | 35 | 50 | 0.102 |
| 951-032-50 | 31.8 | 0.8 | 2.8 | 200 | 2.0 | 35 | 50 | 0.108 |
| 951-035-50 | 35.0 | 0.8 | 2.9 | 225 | 2.0 | 35 | 50 | 0.137 |
| 951-038-50 | 38.1 | 0.8 | 3 | 250 | 2.0 | 45 | 50 | 0.163 |
| 951-040-50 | 40.0 | 0.8 | 3 | 270 | 2.0 | 50 | 50 | 0.178 |
| 951-045-50 | 45.0 | 0.8 | 3.1 | 340 | 2.0 | 55 | 50 | 0.207 |
| 951-050-50 | 50.0 | 0.8 | 3.5 | 415 | 2.0 | 60 | 50 | 0.263 |
| 951-052-50 | 50.8 | 0.8 | 3.5 | 415 | 2.0 | 60 | 50 | 0.266 |
| 951-060-50 | 60.0 | 0.8 | 3.6 | 485 | 1.6 | 70 | 50 | 0.361 |
| 951-063-50 | 63.5 | 0.8 | 3.6 | 505 | 1.6 | 70 | 50 | 0.380 |
| 951-070-50 | 70.0 | 0.9 | 3.8 | 560 | 1.5 | 90 | 50 | 0.541 |
| 951-076-50 | 76.2 | 0.9 | 3.8 | 615 | 1.5 | 100 | 50 | 0.620 |
| 951-080-50 | 80.0 | 0.9 | 4.3 | 725 | 1.5 | 110 | 50 | 0.655 |
| 951-090-30 | 90.0 | 0.9 | 4.5 | 825 | 1.4 | 125 | 30 | 0.442 |
| 951-100-30 | 100.0 | 0.9 | 4.6 | 940 | 1.3 | 140 | 30 | 0.642 |
| 951-102-30 | 102.0 | 0.9 | 4.6 | 940 | 1.3 | 140 | 30 | 0.654 |
| 951-110-30 | 110.0 | 1 | 5 | 1,065 | 1.2 | 150 | 30 | 0.746 |
| 951-120-30 | 120.0 | 1 | 5 | 1,165 | 1.0 | 160 | 30 | 0.831 |
| 951-127-30 | 127.0 | 1 | 5 | 1,230 | 1.0 | 170 | 30 | 0.900 |
| 951-130-30 | 130.0 | 1 | 5 | 1,260 | 0.9 | 170 | 30 | 0.945 |
| 951-140-30 | 140.0 | 1 | 5.1 | 1,405 | 0.9 | 175 | 30 | 1.041 |
| 951-150-20 | 151.5 | 1.1 | 5.2 | 1,550 | 0.8 | 180 | 20 | 0.952 |
| 951-152-20 | 152.4 | 1.1 | 5.3 | 1,545 | 0.8 | 180 | 20 | 0.958 |
| 951-160-20 | 160.0 | 1.1 | 6 | 1,725 | 0.7 | 190 | 20 | 1.040 |
| 951-180-20 | 180.0 | 11 | 60 | 1,940 | 4.0 | 300 | 20 | 1.228 |
| 951-200-20 | 200.0 | 11 | 60 | 2,135 | 4.0 | 400 | 20 | 1.431 |
| 951-203-20 | 203.2 | 11 | 60 | 2,135 | 4.0 | 400 | 20 | 1.453 |
| 951-250-10 | 250.0 | 12 | 68 | 3,210 | 4.0 | 450 | 10 | 0.947 |
| 951-300-10 | 300.0 | 12 | 69 | 3,895 | 3.0 | 1,000 | 10 | 1.450 |
