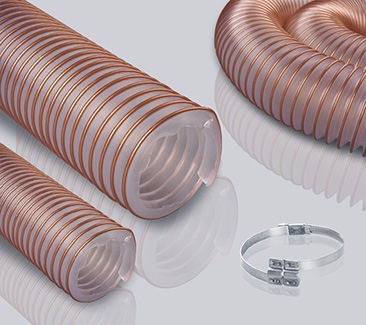

904 0.6 wall thickness PU hose, steel wire reinforcement, flexible telescopic swing, high flexible hose
Color: translucent PU pipe wall, with copper-plated plastic coated steel wire spiral reinforcement (compression type)
Temperature: -40°C / + 90°C (can withstand 125°C for a short time)
Features: Polyester polyurethane hose with copper-plated plastic-coated steel wire reinforcement. The wall thickness ranges from 0.4 to 0.75 mm. It is extremely light and extremely soft, with a stretch ratio of up to 5:1. It is easy to take care of, easy to transport and can save storage space. Wear resistance, mineral oil resistance, ozone resistance, and aging resistance. Especially suitable for the dynamic position of machinery and equipment. It is halogen-free, raw materials comply with REACH regulations, and comply with RoHS environmental protection directives. The grounding of the spiral steel wire can discharge static electricity, which conforms to the standard of TRB S 2153.
Application: transfer and suction of particles, scraps, abrasive powders. It is especially suitable for powder conveying and dust suction in woodworking and ceramic industries. Particularly suitable for parts that need to swing.
Spiral direction: left-hand screw connection: bridge clamp 991L
*ETHER PU products are available
Part Number | Internal Diameter | Wall thickness | Weight | Vacuum | Bending Radius | Coil Length | Volume |
mm | mm | g/m | bar | mm | m | m3 | |
904-025-10 | 25 | 0.40 | 140 | 0.20 | 30 | 10 | 0.004 |
904-032-10 | 32 | 0.40 | 170 | 0.20 | 30 | 10 | 0.006 |
904-038-10 | 38 | 0.40 | 175 | 0.20 | 30 | 10 | 0.005 |
904-040-10 | 40 | 0.40 | 185 | 0.20 | 32 | 10 | 0.005 |
904-045-10 | 45 | 0.40 | 205 | 0.20 | 36 | 10 | 0.006 |
904-051-10 | 51 | 0.40 | 230 | 0.20 | 40 | 10 | 0.007 |
904-060-10 | 60 | 0.40 | 265 | 0.17 | 50 | 10 | 0.010 |
904-063-10 | 63 | 0.40 | 275 | 0.17 | 55 | 10 | 0.011 |
904-065-10 | 65 | 0.40 | 285 | 0.17 | 56 | 10 | 0.011 |
904-070-10 | 70 | 0.43 | 375 | 0.17 | 60 | 10 | 0.013 |
904-076-10 | 76 | 0.43 | 405 | 0.17 | 65 | 10 | 0.015 |
904-080-10 | 80 | 0.43 | 420 | 0.16 | 65 | 10 | 0.016 |
904-090-10 | 90 | 0.43 | 470 | 0.16 | 75 | 10 | 0.022 |
904-102-10 | 102 | 0.53 | 530 | 0.13 | 85 | 10 | 0.028 |
904-110-10 | 110 | 0.53 | 570 | 0.12 | 90 | 10 | 0.032 |
904-120-10 | 120 | 0.53 | 620 | 0.10 | 100 | 10 | 0.037 |
904-127-10 | 127 | 0.63 | 760 | 0.10 | 105 | 10 | 0.045 |
904-130-10 | 130 | 0.63 | 775 | 0.08 | 105 | 10 | 0.047 |
904-140-10 | 140 | 0.63 | 840 | 0.08 | 115 | 10 | 0.054 |
904-152-10 | 152 | 0.63 | 900 | 0.08 | 125 | 10 | 0.063 |
904-160-10 | 160 | 0.63 | 945 | 0.07 | 130 | 10 | 0.069 |
904-180-10 | 180 | 0.63 | 1,210 | 0.05 | 150 | 10 | 0.087 |
904-200-10 | 200 | 0.63 | 1,345 | 0.040 | 165 | 10 | 0.106 |
904-203-10 | 203 | 0.63 | 1,360 | 0.040 | 165 | 10 | 0.109 |
904-228-10 | 228 | 0.63 | 1,525 | 0.040 | 185 | 10 | 0.142 |
904-254-10 | 254 | 0.65 | 1,845 | 0.04 | 210 | 10 | 0.174 |
904-279-10 | 279 | 0.65 | 2,025 | 0.04 | 230 | 10 | 0.209 |
904-305-10 | 305 | 0.65 | 2,205 | 0.03 | 250 | 10 | 0.248 |
904-356-10 | 356 | 0.65 | 2,570 | 0.03 | 300 | 10 | - |
904-406-10 | 406 | 0.75 | 3,150 | 0.03 | 350 | 10 | - |
