Colour: Black
temperature range: -40 / + 60 °C

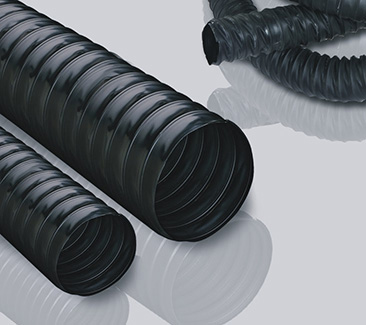

Structural characteristics: Polyethylene (PE) hose, conductive hose with surface resistance ≤104 Ohm, Comply with TRBS 2153, ATEX Directive (94/9/EC document number) and TRGS 727. It has excellent chemical resistance, no halogen, no plasticizer.
Application: It can be used for aggresive corrosive chemicals such as solvent smoke, suction and delivery of various chemical fumes and gases, and can be used in explosive environments.
Part Number | Internal Diameter | Wall thickness | Weight | Bending Radius | Work Pressure | Vacuum | Coil Length |
mm | mm | kg/m | mm | bar | bar | m | |
954PE-040-10 | 40 | 0.4 | 0.10 | 25 | 0.45 | 0.20 | 10 |
954PE-051-10 | 51 | 0.4 | 0.12 | 35 | 0.40 | 0.16 | 10 |
954PE-060-10 | 60 | 0.4 | 0.15 | 42 | 0.40 | 0.16 | 10 |
954PE-065-10 | 65 | 0.4 | 0.17 | 49 | 0.30 | 0.12 | 10 |
954PE-076-10 | 76 | 0.4 | 0.18 | 53 | 0.30 | 0.10 | 10 |
954PE-080-10 | 80 | 0.4 | 0.20 | 56 | 0.30 | 0.10 | 10 |
954PE-090-10 | 90 | 0.4 | 0.22 | 63 | 0.25 | 0.09 | 10 |
954PE-102-10 | 102 | 0.4 | 0.30 | 70 | 0.20 | 0.09 | 10 |
954PE-120-10 | 120 | 0.4 | 0.37 | 85 | 0.20 | 0.08 | 10 |
954PE-140-10 | 140 | 0.4 | 0.40 | 90 | 0.20 | 0.07 | 10 |
954PE-152-10 | 152 | 0.4 | 0.44 | 100 | 0.20 | 0.06 | 10 |
954PE-180-10 | 180 | 0.4 | 0.89 | 125 | 0.10 | 0.05 | 10 |
954PE-203-10 | 203 | 0.4 | 1.01 | 140 | 0.09 | 0.05 | 10 |
954PE-250-10 | 250 | 0.4 | 1.26 | 175 | 0.08 | 0.04 | 10 |
954PE-300-10 | 300 | 0.4 | 1.51 | 210 | 0.05 | 0.03 | 10 |
954PE-350-10 | 350 | 0.4 | 2.06 | 245 | 0.03 | 0.02 | 10 |
954PE-400-10 | 400 | 0.4 | 2.35 | 280 | 0.02 | 0.02 | 10 |
954PE-450-10 | 450 | 0.4 | 2.64 | 315 | 0.02 | 0.01 | 10 |
954PE-500-10 | 500 | 0.4 | 2.93 | 350 | 0.01 | 0.01 | 10 |
