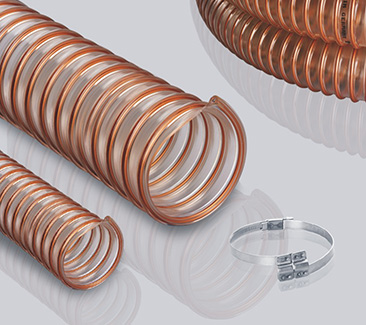

906S 1.5 wall thickness PU hose, flame-retardant, anti-static, heavy-duty and wear-resistant
Color: Transparent PU pipe wall, with copper-plated steel wire spiral reinforcement
Temperature range:-40 / + 90 °C (up to 125 °C in a short time)
Structural characteristics: High wear resistance and microbial resistance and hydrolysis resistance polyester polyurethane (ESTER PU), which can permanently conduct static electricity, and the surface resistance value is less than 10^9Ohm, which meets the requirements of DIN 4102 B1 flame retardant level. The inner surface is smooth. 1.5mm between spirals.
Application: It can be used for the transportation and suction of various abrasive materials, such as corn cobs, shot blasting machine steel balls, metal chips, paper, cement and concrete, stones, seeds, wood chips, etc. Can be used for lawn mowers.
Spiral direction: right-handed spiral
Connection: Bridge clamp 991R
| Part Number | Internal Diameter | External Diameter | Weight | Bending Radius | Working Pressure | Vacuum | Coil Length |
| mm | mm | kg/m | mm | bar | bar | m | |
| 906S-016-20 | 16 | 22 | 0.18 | 40 | 4.50 | 0.922 | 20 |
| 906S-018-20 | 18 | 24 | 0.20 | 41 | 4.35 | 0.922 | 20 |
| 906S-020-20 | 20 | 26 | 0.22 | 43 | 4.30 | 0.922 | 20 |
| 906S-025-20 | 25 | 33 | 0.29 | 47 | 4.16 | 0.922 | 20 |
| 906S-032-20 | 32 | 41 | 0.39 | 60 | 3.25 | 0.922 | 20 |
| 906S-038-20 | 38 | 47 | 0.46 | 69 | 3.12 | 0.824 | 20 |
| 906S-040-20 | 40 | 49 | 0.49 | 72 | 3.00 | 0.819 | 20 |
| 906S-045-20 | 45 | 55 | 0.55 | 80 | 2.95 | 0.809 | 20 |
| 906S-050-20 | 50 | 61 | 0.71 | 87 | 2.90 | 0.785 | 20 |
| 906S-055-20 | 55 | 65 | 0.77 | 95 | 2.75 | 0.760 | 20 |
| 906S-060-20 | 60 | 70 | 0.84 | 102 | 2.55 | 0.735 | 20 |
| 906S-065-20 | 65 | 75 | 0.91 | 112 | 2.40 | 0.662 | 20 |
| 906S-070-20 | 70 | 80 | 0.97 | 117 | 2.25 | 0.662 | 20 |
| 906S-075-20 | 75 | 87 | 1.06 | 126 | 2.00 | 0.588 | 20 |
| 906S-080-20 | 80 | 91 | 1.11 | 132 | 2.00 | 0.588 | 20 |
| 906S-085-20 | 85 | 97 | 1.20 | 145 | 1.65 | 0.515 | 20 |
| 906S-090-20 | 90 | 101 | 1.25 | 149 | 1.65 | 0.515 | 20 |
| 906S-102-20 | 102 | 113 | 1.48 | 165 | 1.50 | 0.441 | 20 |
| 906S-110-15 | 110 | 121 | 1.61 | 179 | 1.35 | 0.441 | 15 |
| 906S-115-15 | 115 | 121 | 1.61 | 179 | 1.35 | 0.441 | 15 |
| 906S-120-15 | 120 | 131 | 1.75 | 194 | 1.30 | 0.306 | 15 |
| 906S-125-15 | 125 | 138 | 1.91 | 203 | 1.30 | 0.306 | 15 |
| 906S-127-15 | 127 | 140 | 1.93 | 205 | 1.30 | 0.306 | 15 |
| 906S-130-15 | 130 | 141 | 1.96 | 209 | 1.30 | 0.306 | 15 |
| 906S-140-15 | 140 | 151 | 2.11 | 224 | 1.05 | 0.245 | 15 |
| 906S-150-15 | 150 | 163 | 2.29 | 242 | 1.05 | 0.245 | 15 |
| 906S-152-15 | 152 | 165 | 2.35 | 247 | 1.05 | 0.245 | 15 |
| 906S-160-15 | 160 | 171 | 2.51 | 255 | 0.90 | 0.245 | 15 |
| 906S-170-15 | 170 | 181 | 2.67 | 270 | 0.90 | 0.184 | 15 |
| 906S-175-15 | 175 | 186 | 2.74 | 278 | 0.90 | 0.184 | 15 |
| 906S-180-15 | 180 | 191 | 2.82 | 285 | 0.75 | 0.184 | 15 |
| 906S-200-15 | 200 | 215 | 3.30 | 321 | 0.75 | 0.184 | 15 |
| 906S-225-15 | 225 | 237 | 3.65 | 353 | 0.60 | 0.123 | 15 |
| 906S-250-15 | 250 | 263 | 3.84 | 390 | 0.60 | 0.123 | 15 |
| 906S-275-15 | 275 | 288 | 4.22 | 426 | 0.45 | 0.123 | 15 |
| 906S-300-10 | 300 | 313 | 4.94 | 465 | 0.45 | 0.123 | 10 |
