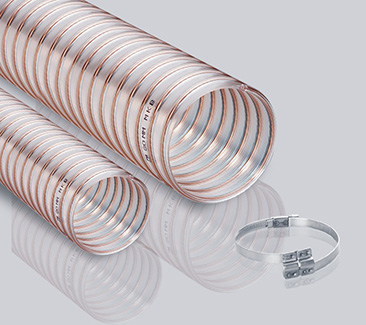

906P 1.4 Thick-walled PU hose, flat inner wall, heavy-duty and wear-resistant
Color: translucent PU (polyether polyurethane) pipe wall, reinforced with spiral copper-plated steel wire
Temperature range:-40/100 °C
Structural characteristics: smooth inner wall, abrasion resistance, oil resistance, hydrolysis resistance, mold resistance, the hose is non-toxic, halogen-free, and plasticizer-free
Application: suction and transportation of abrasive particles, also used for the transportation of water-based materials such as mud, sewage, etc.
Spiral direction: right-handed spiral
Connection: Bridge clamp 991R
| Part Number | Internal Diameter | Wall thickness | Weight | Bending Radius | Working Pressure | Vacuum | Coil Length |
| mm | mm | kg/m | mm | bar | bar | m | |
| 906P-020-20 | 20 | 1.4 | 0.28 | 35 | 3.50 | 0.95 | 20 |
| 906P-025-20 | 25 | 1.4 | 0.30 | 38 | 3.00 | 0.90 | 20 |
| 906P-030-20 | 30 | 1.4 | 0.37 | 45 | 3.00 | 0.90 | 20 |
| 906P-032-20 | 32 | 1.4 | 0.38 | 48 | 3.00 | 0.90 | 20 |
| 906P-035-20 | 35 | 1.4 | 0.45 | 54 | 2.60 | 0.80 | 20 |
| 906P-038-20 | 38 | 1.4 | 0.52 | 57 | 2.40 | 0.75 | 20 |
| 906P-040-20 | 40 | 1.4 | 0.56 | 60 | 2.30 | 0.70 | 20 |
| 906P-045-20 | 45 | 1.4 | 0.62 | 65 | 2.10 | 0.70 | 20 |
| 906P-050-20 | 50 | 1.4 | 0.67 | 75 | 1.90 | 0.60 | 20 |
| 906P-051-20 | 51 | 1.4 | 0.67 | 75 | 1.90 | 0.60 | 20 |
| 906P-055-20 | 55 | 1.4 | 0.72 | 80 | 1.90 | 0.60 | 20 |
| 906P-060-20 | 60 | 1.4 | 0.79 | 90 | 1.80 | 0.55 | 20 |
| 906P-063-20 | 63 | 1.4 | 0.82 | 95 | 1.70 | 0.55 | 20 |
| 906P-065-20 | 65 | 1.4 | 0.85 | 100 | 1.70 | 0.55 | 20 |
| 906P-070-20 | 70 | 1.4 | 0.92 | 105 | 1.60 | 0.50 | 20 |
| 906P-076-20 | 76 | 1.4 | 0.98 | 113 | 1.20 | 0.50 | 20 |
| 906P-080-20 | 80 | 1.4 | 1.09 | 120 | 1.20 | 0.45 | 20 |
| 906P-090-20 | 90 | 1.4 | 1.23 | 135 | 1.10 | 0.45 | 20 |
| 906P-102-15 | 102 | 1.4 | 1.36 | 150 | 1.10 | 0.40 | 15 |
| 906P-110-15 | 110 | 1.4 | 1.38 | 165 | 1.00 | 0.35 | 15 |
| 906P-120-15 | 120 | 1.4 | 1.42 | 180 | 0.90 | 0.30 | 15 |
| 906P-127-15 | 127 | 1.4 | 1.54 | 188 | 0.80 | 0.25 | 15 |
| 906P-140-15 | 140 | 1.4 | 1.75 | 210 | 0.70 | 0.20 | 15 |
| 906P-150-15 | 150 | 1.4 | 1.82 | 225 | 0.70 | 0.20 | 15 |
| 906P-152-15 | 152 | 1.4 | 1.82 | 225 | 0.70 | 0.20 | 15 |
| 906P-160-15 | 160 | 1.4 | 2.15 | 240 | 0.60 | 0.20 | 15 |
| 906P-170-15 | 170 | 1.4 | 2.20 | 250 | 0.60 | 0.20 | 15 |
| 906P-175-15 | 175 | 1.4 | 2.35 | 263 | 0.55 | 0.15 | 15 |
| 906P-180-15 | 180 | 1.4 | 2.55 | 270 | 0.50 | 0.15 | 15 |
| 906P-200-15 | 200 | 1.4 | 2.92 | 300 | 0.50 | 0.15 | 15 |
| 906P-203-15 | 200 | 1.4 | 2.92 | 300 | 0.50 | 0.15 | 15 |
| 906P-228-10 | 228 | 1.4 | 3.25 | 338 | 0.40 | 0.10 | 10 |
| 906P-250-10 | 250 | 1.4 | 3.57 | 375 | 0.30 | 0.10 | 10 |
| 906P-254-10 | 254 | 1.4 | 3.57 | 375 | 0.30 | 0.10 | 10 |
| 906P-305-10 | 305 | 1.4 | 4.31 | 450 | 0.30 | 0.10 | 10 |
